Manufacturer: Penguin r/c
The PS1004_01 Paddle Mounting Plate for wheels with Diameters between 280 and 380mm. If you do NOT have a larger diameter wheel or wish to have Paddle Overlap on your smaller diameter wheel you may wist to look at the P1004_02 instead.
Manufacturer part number: PS1004_01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$64.99
excluding shipping
- +

PS1004_01 Overview

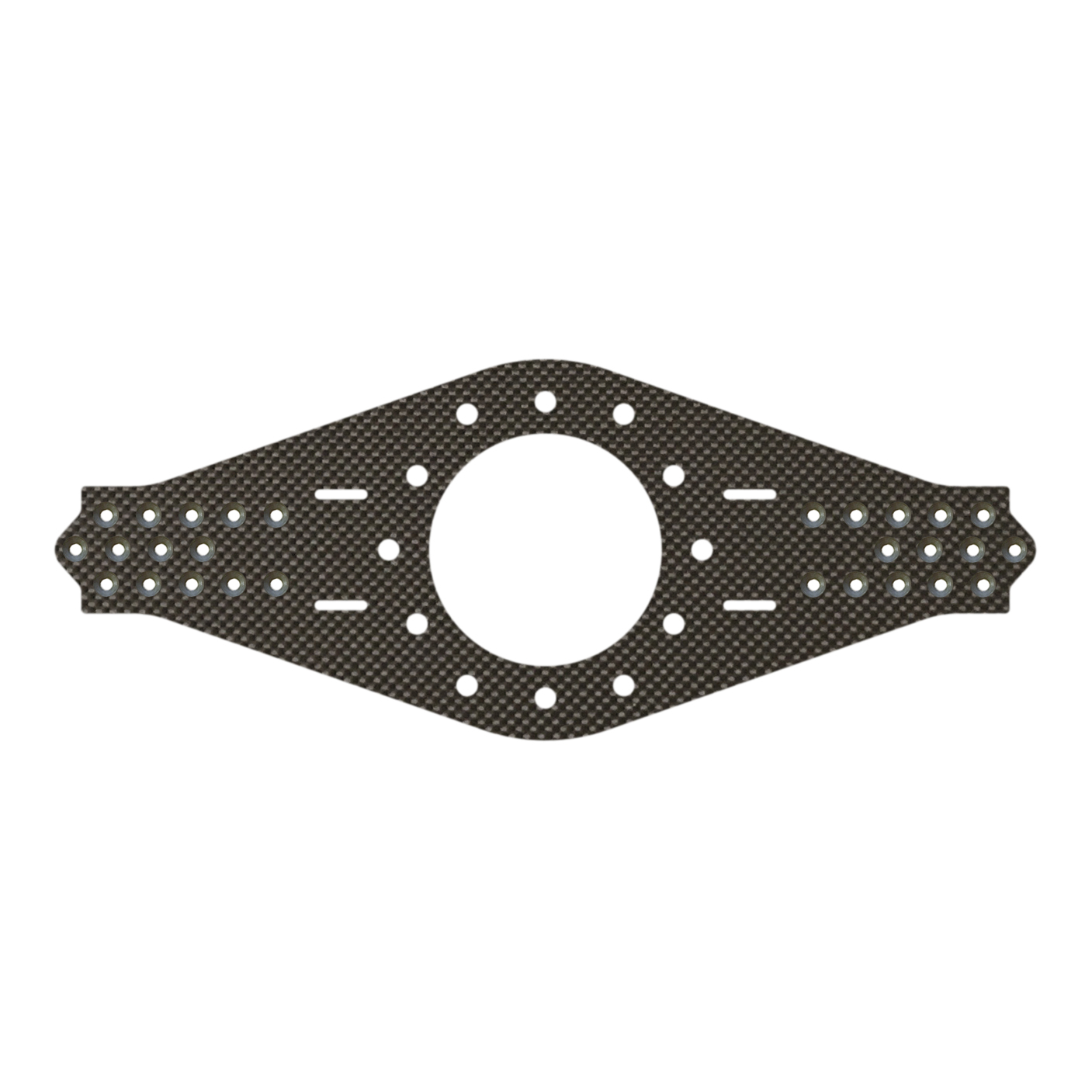

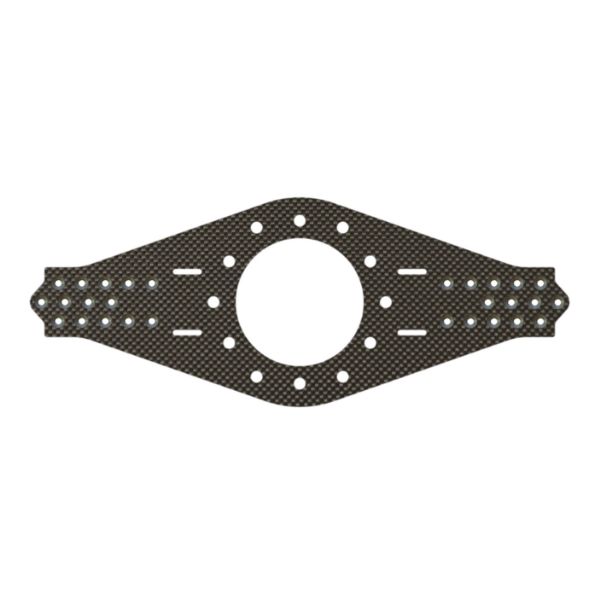

This Mounting plate is designed to allow easy mounting of our paddles to any steering wheel with a 70mm or 74mm PCD Steering wheel (Momo/Sparco 70mm PCD, Nardi/Personal 74mm PCD). Solid mounting locations of 10mm allow for infinate adjustment of the distance of the paddles from each other to fine tune positioning. This plate is made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern. In order to increase the structural rigidity of the plate (especially when using higher tension springs) we have designed this plate to work with the PS1004_05 reinforcement kit.

The PS1004_01 plate is capable of being used on steering wheels from 280 - 320mm in Diameter though it is suggested that the PS1004_02 Paddle plate be used instead on smaller diameter steering wheels in this range as the length of the mounting arms could interfere with usage. The plate length can be trimmed if needed without structural issue.

PS1004_01 Overview

This Mounting plate is designed to allow easy mounting of our paddles to any steering wheel with a 70mm or 74mm PCD Steering wheel (Momo/Sparco 70mm PCD, Nardi/Personal 74mm PCD). Solid mounting locations of 10mm allow for infinate adjustment of the distance of the paddles from each other to fine tune positioning. This plate is made out of high quality multi directional reinforced US produced M3.0 Carbon Fiber plate in a 3K weave pattern. In order to increase the structural rigidity of the plate (especially when using higher tension springs) we have designed this plate to work with the PS1004_05 reinforcement kit.

The PS1004_01 plate is capable of being used on steering wheels from 280 - 320mm in Diameter though it is suggested that the PS1004_02 Paddle plate be used instead on smaller diameter steering wheels in this range as the length of the mounting arms could interfere with usage. The plate length can be trimmed if needed without structural issue.
