PSES Overview

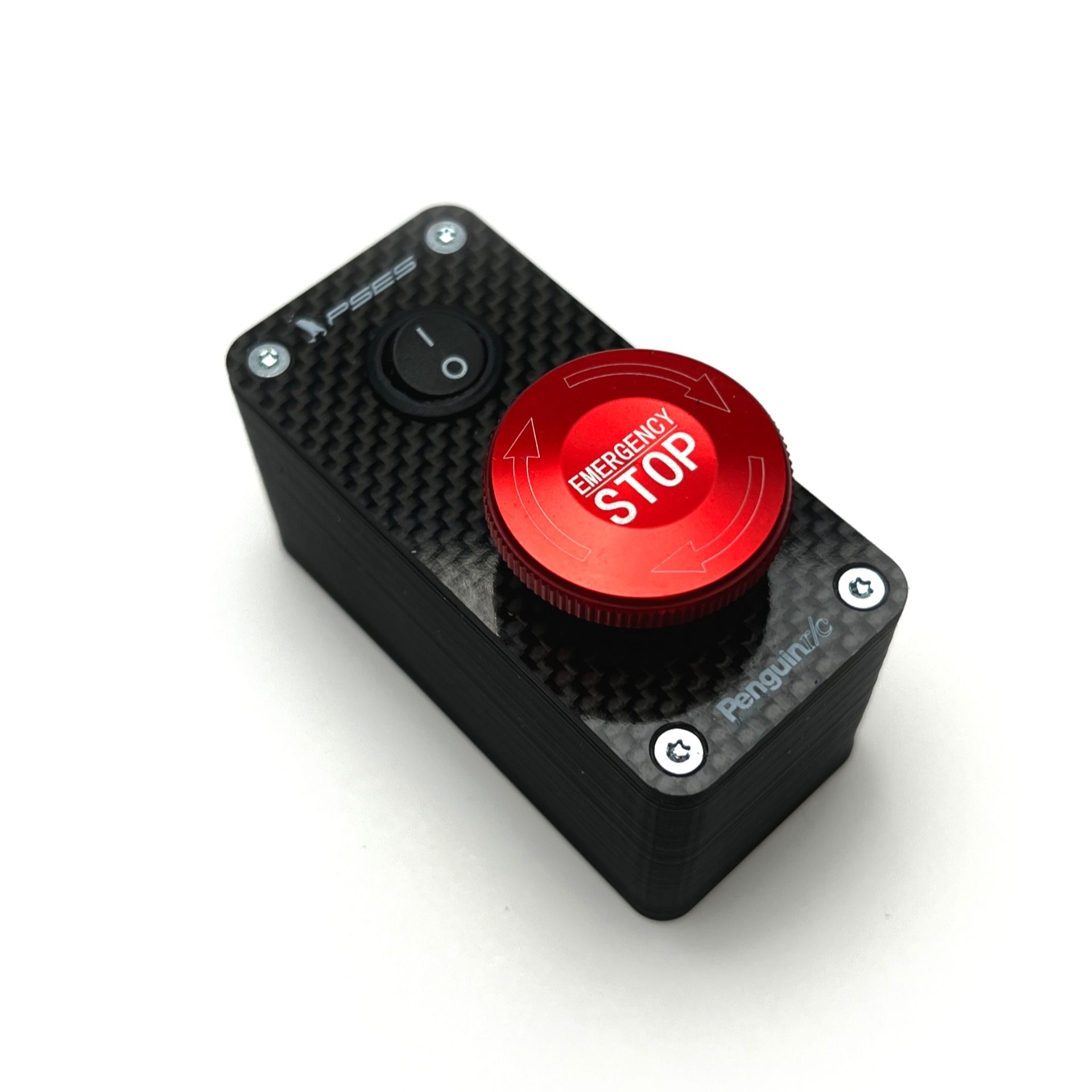

The PSES Emergency Switch was origianlly designed primarily for use with the VRS DFP20 Direct Drive wheel. The switch includes an Emergency Safety Switch along with a power switch to allow for remote activation of the base main power from the PSES.
The design of the PSES Emergency switch is semi-universal, meaning that it can be used with other Direct Drive bases besides the VRS units it was designed for depending upon how these bases implement their estop and if we have been able to test or develop and optional cable for use. In cases where the ability to use the PSES, an optional cable for that unit is available.
please see the current compatibility list below.
| Direct Drive Wheelbase: |
E-Stop Function |
Power Switch Function |
Notes: |
| VRS Direct Force Pro (DFP20) |
Yes |
Yes |
|
| VRS uDFP |
Yes |
Yes |
|
| VRS DFP15 |
Yes |
Yes* |
*Requires firmware 1.18 or later |
| SimMagic Alpha (series) |
- |
- |
incompatible |
| SimMagic Alpha Evo (series) |
- |
- |
DO NOT connect ethernet RJ45,
damage to base may occur |
| SimuCUBE SC1 |
Yes* |
- |
*Requires specific optional cable |
| SimuCUBE SC2 |
- |
- |
incompatible |
| SimuCUBE SC3 |
- |
- |
incompatible |
| Fanatec DD1 |
- |
- |
Use PSFSS Fanatec Safety Switch |
| Fanatec DD2 |
- |
- |
Use PSFSS Fanatec Safety Switch |
| Bases not listed |
contact us |
|
To see if this unit is or can be made compatible. |
*contact us for the 1.18 firmware upgrade if your unit is pre 1.18 na dnot upgradable through VRS
The design of the the PSES is easily mounted using M5x10 screws with the integrated attachment points on the back of the unit. The dimentions of the PSES were chosen to complement use with 80/20 rigs and the optional mounting plate PSSM allows the switch to be mounted flush next to 40mm section, the PSFM allows for front mounting.
